Acudor FB-5060-PC Fire Rated Prime Coated Steel Access Door

  • $99.00
  • Save $11.00

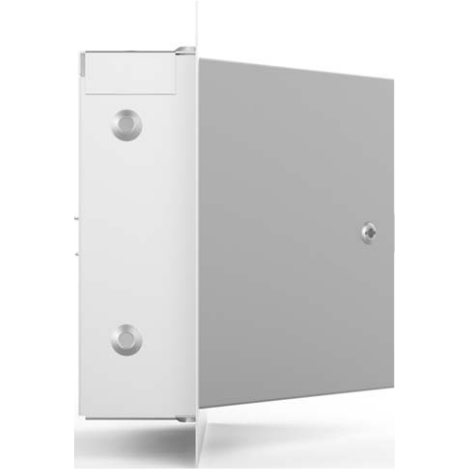

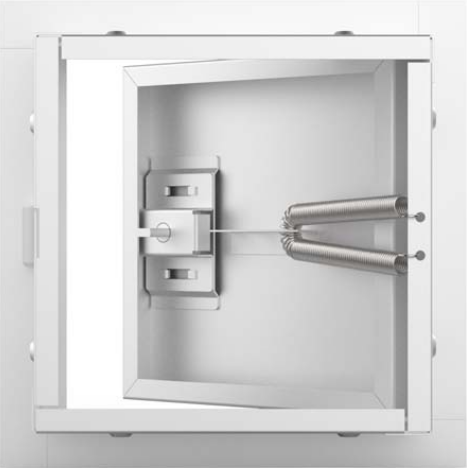

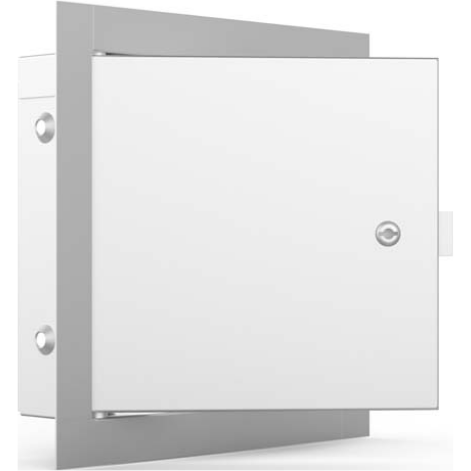

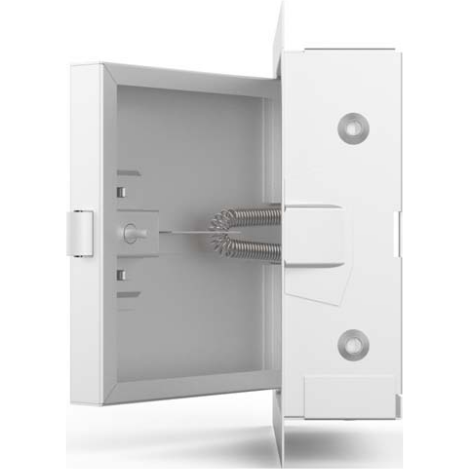

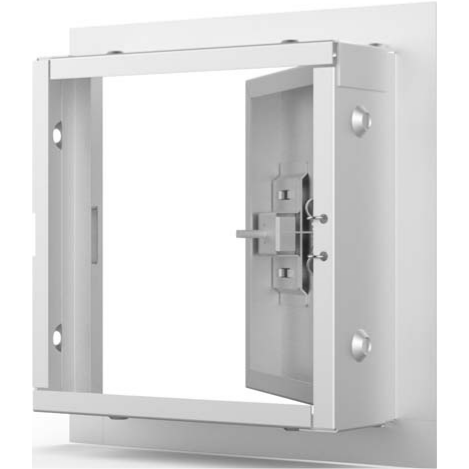

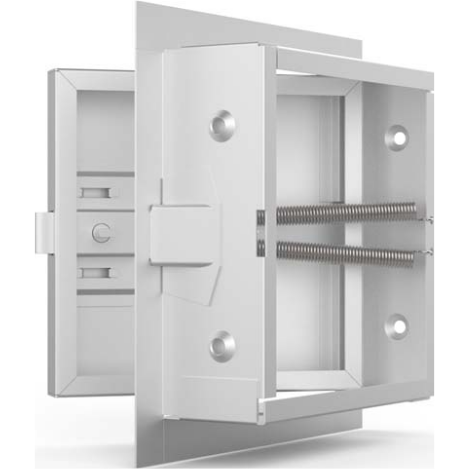

Acudor FB-5060-PC Fire Rated Prime Coated Steel Access Door

Acudor FB-5060-PC Fire Rated Prime Coated Steel Access Door.

Features & Benefits:

  • Concealed hinge
  • Self-latching / Self-closing
  • Self-closing & self-latching door mechanism
  •  Inside latch release
  • Available with a removable door panel

Application:

  • For WALL applications.  For fire rated ceiling applications, see the Acudor FW-5050 Access Door,
  • Designed to maintain continuity in a 2 hour fire rated wall, when temperature rise is not a factor.

Available Sizes:

8" x 8", 10" x 10"12" x 12", 16" x 16", 18" x 18", 20" x 20", 22" x 30", 22" x 36", 24" x 24", 24" x 36", 24" x 48", 30" x 30", 36" x 36", 36" x 48".

Acudor FB-5060 Access Door Specifications:

  • Material: Steel
  • Door: 16 gauge
  • Mounting Frame: 16 gauge. Flush to frame with reinforced edges, flange 1" wide
  • Hinge: Concealed
  • Fire Rating (Walls): UL — 1-1/2 hour "B" label. ULC — 2 hour "B" label. (optional) Max sizes of 36" x 48" and 24" x 79"
  • Standard Latch: Universal self-latching bolt, operated by either a knurled knob or flush key. When master keying is required, doors can be prepared for rim or mortise cylinder locks.
  • Finish:  Steel: 5 stage iron phosphate preparation with prime coat of White alkyd baked-on enamel.

Technical Documentation:

Acudor FB-5060-PC Fire Rated Prime Coated Steel Access Door Product Page: Click Here.

Acudor FB-5060-PC Fire Rated Prime Coated Steel Access Door Specification Submittal Up to 24" x 24": Click Here.

Acudor FB-5060-PC Fire Rated Prime Coated Steel Access Door Specification Submittal Over 24" x 24": Click Here.
