Mifab F1100-AS Floor Drain w/ Angle Strainer for Non-Membrane Floors
Mifab F1100-AS-1 Floor Drain w/ 5" x 3-5/8" x 3-5/8" Nickel Bronze Angle Strainer for Non-Membrane Floors.
Used in showers, kitchens, restrooms, and other non-membrane finished areas where the drain is installed at the floor and wall junction. The vertical grate openings allow water to continue to drain if the horizontal grate openings become clogged.

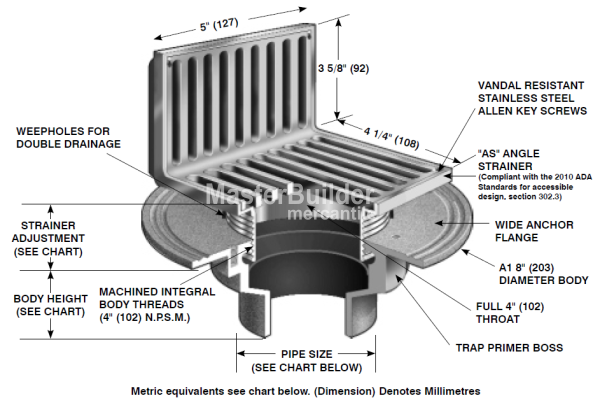

MIFAB® Series F1100-AS-1 lacquered cast iron floor drain with anchor flange, weepholes, and “AS” angle satin finished nickel bronze strainer with vandal resistant stainless steel allen key screws. (For membrane floors, use MIFAB® F1100-AS-C Series, or select the -C suffix option above.)
Available Connection Sizes:
- 2" = F1102-AS-1
- 3" = F1103-AS-1
- 4" = F1104-AS-A
- Mifab F1100-AS: Specification Submittal
- Mifab F1100-AS: Features & Benefits
- Mifab F1100-AS: Typical Installation
