Phoenix UH8801 Commercial Evaporative Cooler, Side Discharge, Aspen Media, Blower Style, UL Listed

  • $ 3,285.00 CAD


Phoenix UH8801 Commercial Evaporative Cooler, Side Discharge, Aspen Media, Blower Style, UL Listed

Phoenix Manufacturing Inc. UH8801 Commercial Evaporative Cooler, Side Discharge, Aspen Media, Blower Style, UL Listed.

Performance Overview:Phoenix UH8801 Commercial Evaporative Cooler, Side Discharge, Aspen Media, Blower Style, UL Listed

Product Overview:

  • Environmentally Friendly:
    • The simple concept of mixing air and water produces powerful, energy efficient cooling that is both economical and environmentally friendly. The Frigiking coolers are ideally suited for the rigorous demands of commercial / industrial applications such as those found in warehouses, plants and factories.

Features & Benefits:

  • Units are UL Listed to UL Standard 507.
  • High quality architectural grade Peblar XT® finish.
  • Galvanized sheet steel is zinc coated at weights rated G40 or G90.
  • Up to 22,000 CFM capacity (Industry Standard Rating).
  • Evaporative media used in the UL Listed models is rated to UL900.
  • Three Phase EISA motors are NEMA MG-1 Table 12-12 compliant.
  • Belt and bleed off included.
  • Bearings have an L10 bearing life of 39,000 hours.
  • Solid shaft for strength & durability.
  • Heavy duty UL Recognized motor & pump available.
  • Multilayer bottom pan finish.
  • Dynamically balanced blower wheels.
  • City of Los Angeles Approved.

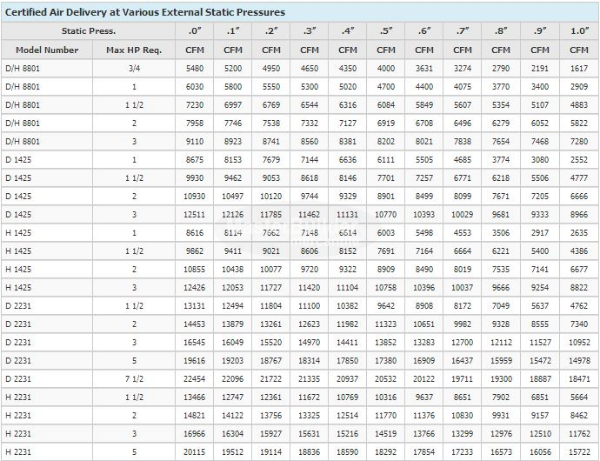

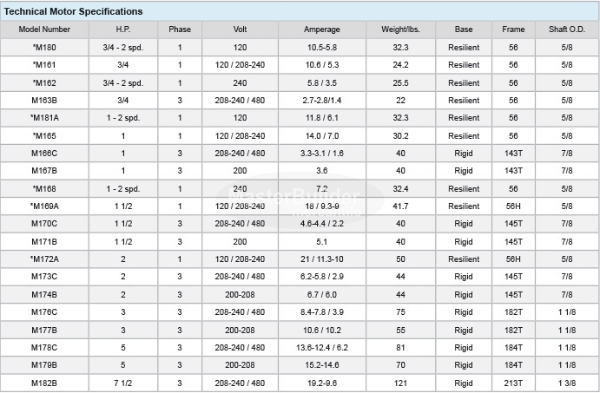

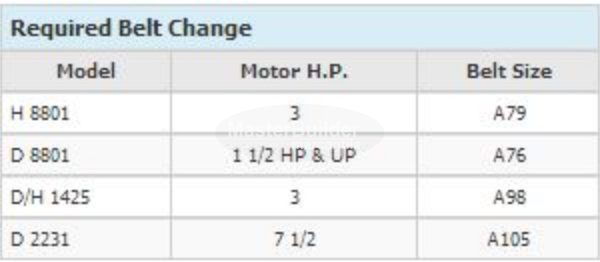

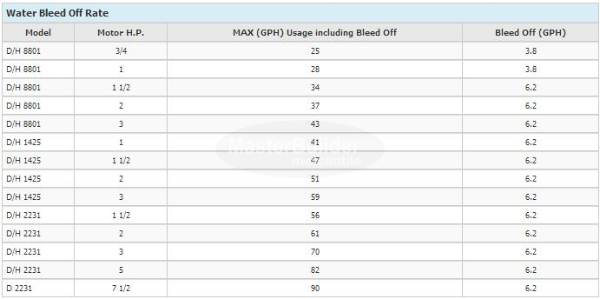

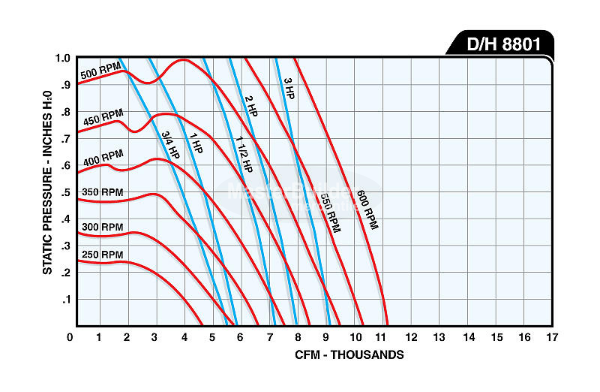

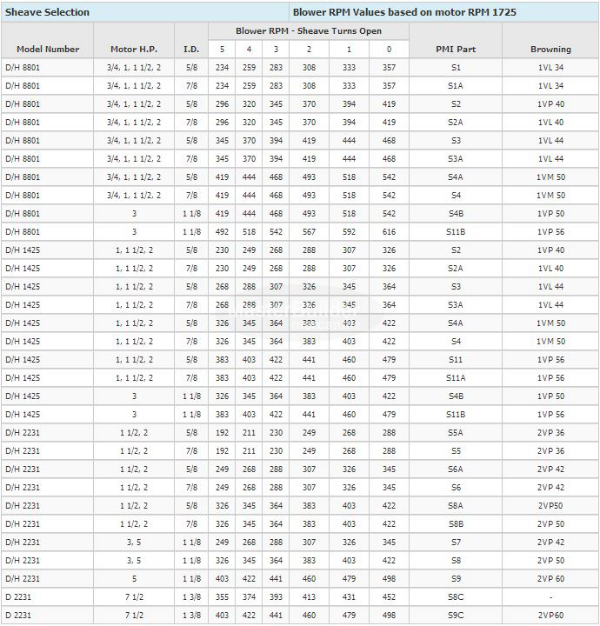

Technical Details:

Phoenix UH8801 Commercial Evaporative Cooler, Side Discharge, Aspen Media, Blower Style, UL ListedPhoenix UH8801 Commercial Evaporative Cooler, Side Discharge, Aspen Media, Blower Style, UL Listed

Phoenix UH8801 Commercial Evaporative Cooler, Side Discharge, Aspen Media, Blower Style, UL Listed

Phoenix UH8801 Commercial Evaporative Cooler, Side Discharge, Aspen Media, Blower Style, UL Listed

Phoenix UH8801 Commercial Evaporative Cooler, Side Discharge, Aspen Media, Blower Style, UL Listed

Phoenix UH8801 Commercial Evaporative Cooler, Side Discharge, Aspen Media, Blower Style, UL Listed

Technical Downloads:

Phoenix UH8801: Specification Submittal.

Phoenix UH8801: Commercial Aspen Coolers Product Brochure.

Phoenix UH8801: Commercial Aspen Coolers Owners Guide (English).

Phoenix UH8801: Commercial Aspen Coolers Owners Guide (Spanish).

Phoenix UH8801: Replacement Parts List.

Phoenix UH8801: Warranty Information.
