Zurn Z1202-ND4 EZCarry® High Performance Vertical Water Closet Carrier, Back-to-Back, Siphon Jet, 4" No Hub
Zurn Z1202-ND4 EZCarry® High Performance Vertical Water Closet Carrier, Back-to-Back, Siphon Jet, 4" No Hub.
The EZCarry High Performance Water Closet Carrier System offers customers a revolutionary design that out-performs traditional water closet carriers. The EZCarry system has advanced features and benefits that allow the engineer to specify with confidence, gives the contractor a quick and easy install, and proven performance for building owners with standard or low-flow systems. Zurn offers industry-leading line carry across the largest breadth of water closet carriers on the market.
Features & Benefits:
- Propel waste up to three times farther, reducing the possibility of low-flow system clog for overall plumbing system protection
- Protect facilities from excessive loading with standard system design for loading up to 500 lb.
- Install faster with labor saving features on a 30% lighter system
- Reduce maintenance emergencies with carriers designed to optimize waste line carry
- Maintain a sanitary environment with wall-mounted fixture
- Test the system and cut the coupling to length from the front with Zurn's patent-pending EZ-SET™ coupling option
- Reduce adjustment time with factory-assembled trim and universal feet pre-set at 5-1/2" rough-in height

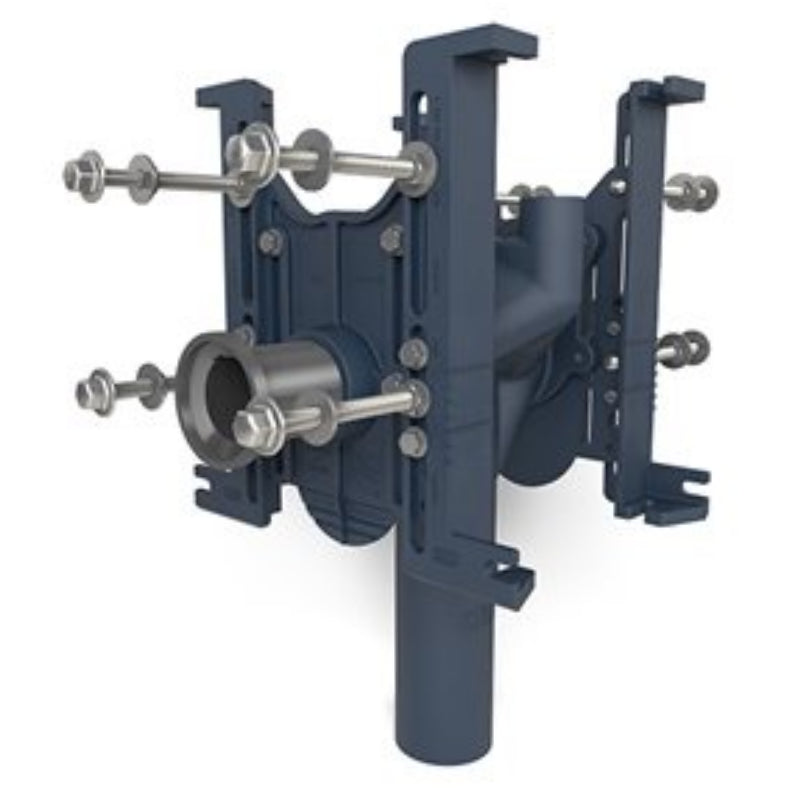

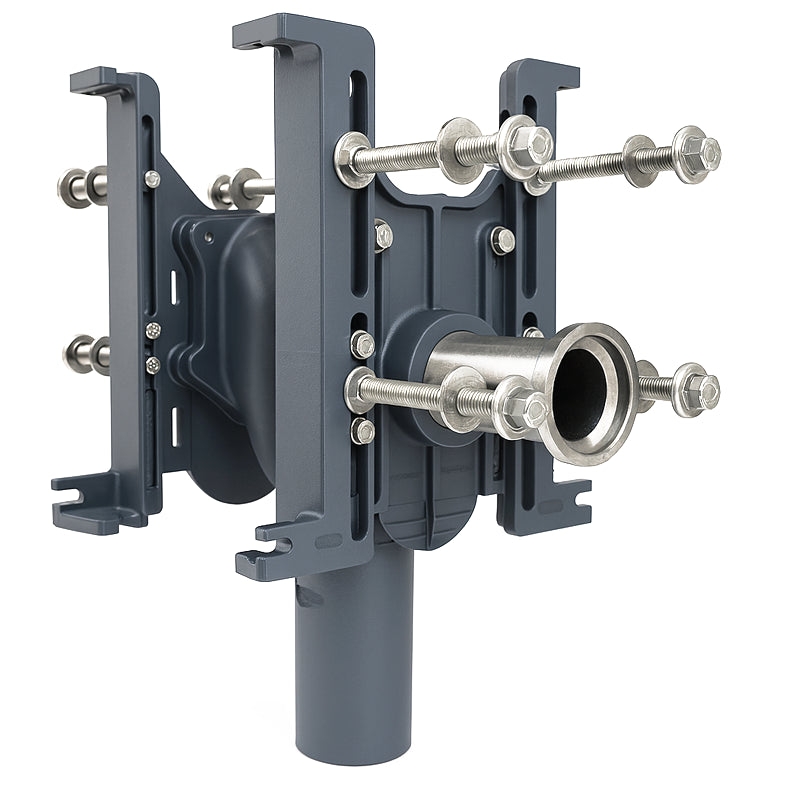

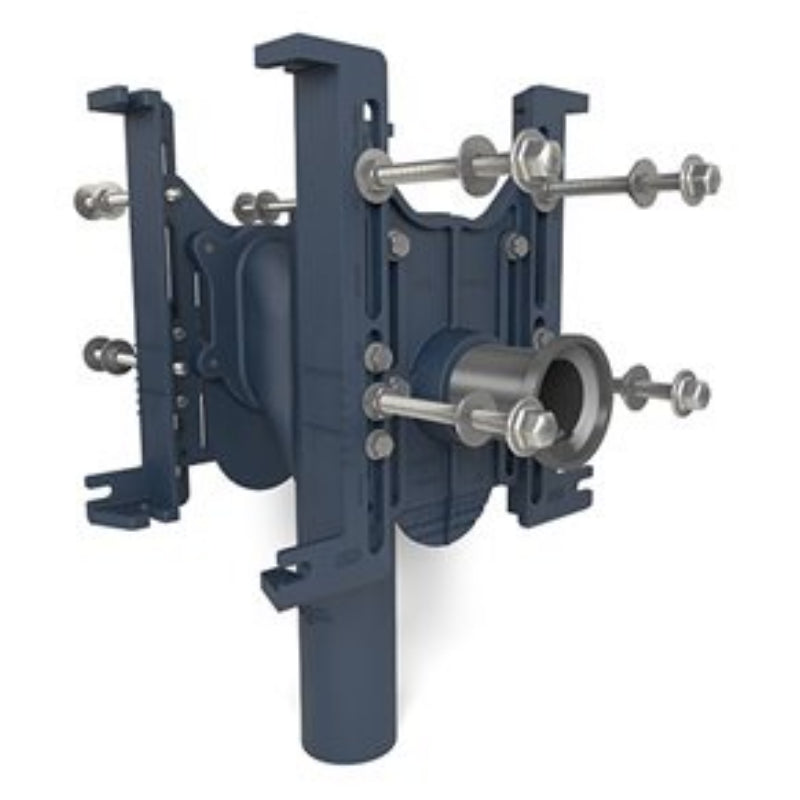

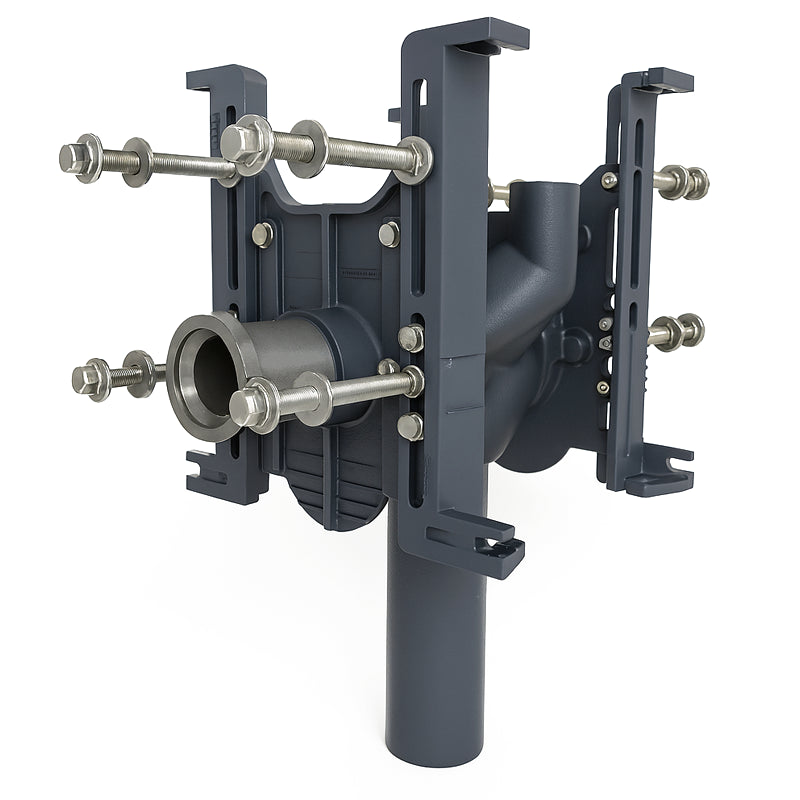

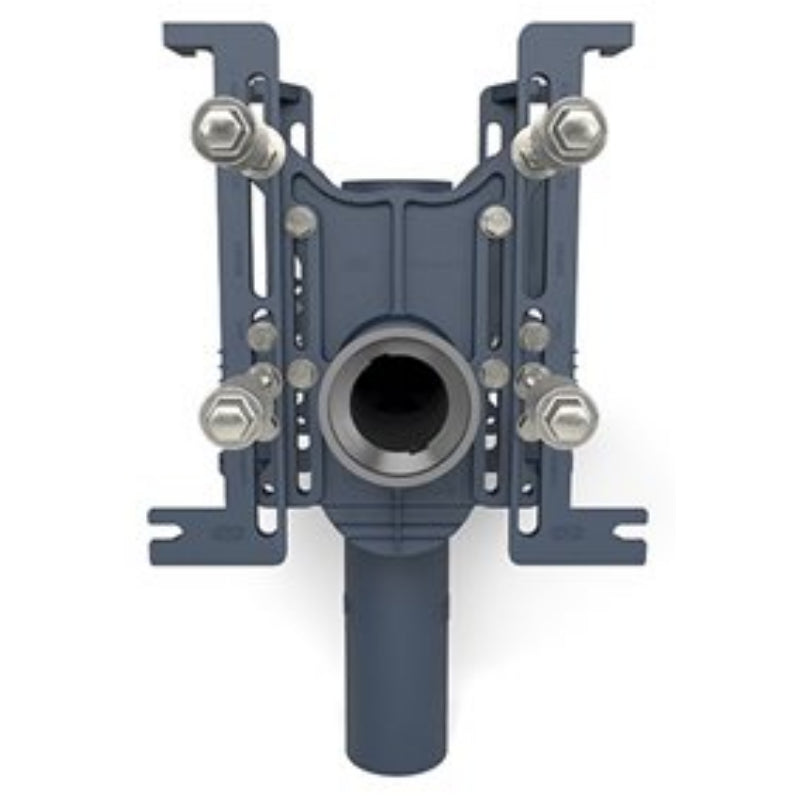

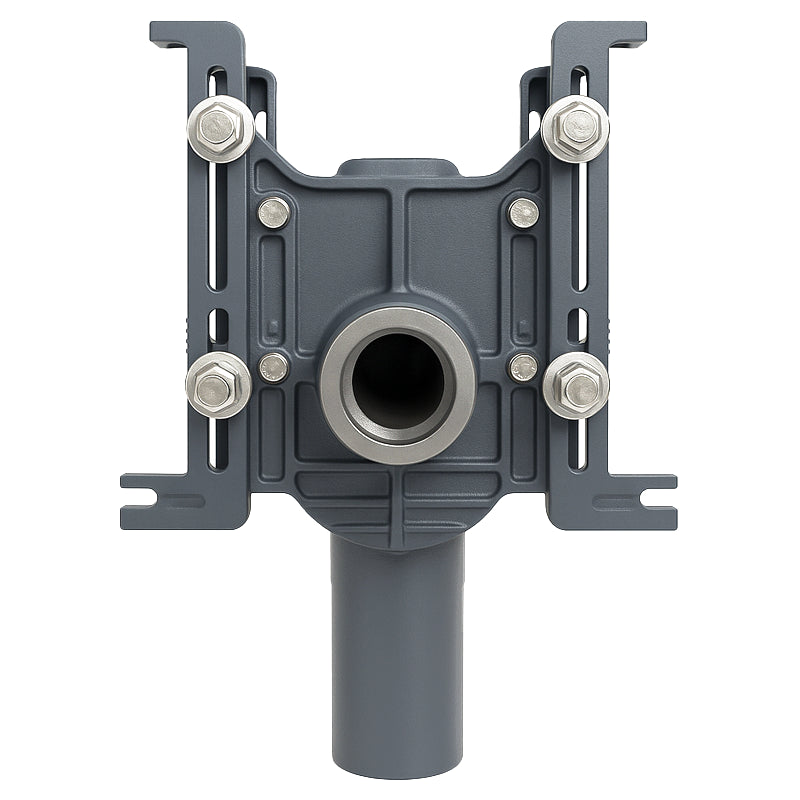

ZURN Z1202-ND4 EZCarry® vertical siphon jet water closet carrier system with high performance waterway and 4" [102mm] no-hub connections. System includes Dura-Coated cast iron double main fitting with hydro-mechanically optimized sweep and extended 2" [51mm] vent, adjustable gasketed faceplates, floor mounted pre-fab slotted foot supports with top anchoring pre-fab support base, fixture bolts, trim, stud protectors, bonded “Neo-Seal” gaskets, and corrosion resistant, adjustable 3" [76mm] dia. X 6" [152mm] couplings with integral test caps designed to increase flow velocity and line carry. EZCarry® system complies with the requirements of ASME A112.6.1M up to a 500 lbs [227 kg] static load rating.
- Zurn Z1202-ND4: Specification Submittal
- Zurn Z1202-ND4: BIM Model
- Zurn Z1202-ND4: DWG Drawing File
- Zurn Z1202-ND4: Engineering Guide
- Zurn Z1202-ND4: Sell Sheet
- Zurn Z1202-ND4: Brochure
- Zurn Z1202-ND4: Installation Instructions
- Zurn Carriers EZCarry Water Closet Carrier System Z1201 & Z1202:
- Zurn Toilet High Efficiency Toilet and Carrier System:
